$900
www.ohm-racing.com
Haltech IC-7 Display Dash [embed]https://youtu.be/IDqIIXl2z2Q[/embed]
Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the IC-7 connects directly to all current Haltech ECUs via a CAN network. The IC-7 can also connect directly (via CAN) to most late model vehicles using the factory OBD-II port.
• Ideal replacement for individual analogue gauge clusters.
• Easy to install and configure.
• User adjustable brightness control with automatic dimming.
• User configurable channels, units and alarms.
• 14 programmable, seven colour shift light LEDs.
• Controlled via easily accessible, face-mounted control buttons.
• Configuration via Haltech IC-7 software and USB cable.
• Screen size: 7in. Case size: 217 x 122mm (8.5″ x 4.8″)
The IC-7 is configured using a brand new, intuitive software. With this software you can change various aspects of the dash behaviour including:
• Ranges of channels. Eg. the maximum RPM on a needle style tacho or a bar graph.
• Red ranges for channels. Eg. when a numeric display changes to red, red zone on a tacho.
• Display units. Eg. metric or imperial, Lambda or AFR.
• The channel to be displayed at each location on the screen.
• The connection method. Eg. Haltech CAN or OBD-II.
• Shift light RPM points and colours.
• Alarm thresholds, colour for on-screen display and shift lights, manual or auto reset methods.
[pdf-embedder url=https://www.ohm-racing.com/wp-content/uploads/2019/11/dash-ic7.pdf title=dash ic7]
Haltech GPS Mod-$118
https://www.haltech.com/product/ht-011310-gps-speed-input-module/
Fuel Tank Sender Specs
4 ohm +/-1.0-Full
110 ohm +/-7.7-Empty
A/C stuffs
2jzge, gte and 1jz, supra MK4, soarer, and sc300 AC compressors are 100% interchangeable. (allegedly)
https://www.supraforums.com/threads/2jz-a-c.400219/
E85 will eat at (slowly granted, but will cause issues over time) factory aluminum fuel rail, need anodized rail-$430
https://fuelinjectorclinic.com/more-products/fuel-system-kits/FKT-145-6
Twin fuel pumps to fuel injectors/fuel rails/maintain pressure
Bosch 044's-$215 Each
https://www.suprastore.com/bo044fupu50.html
New lines to support E85 Approx.-$7-$9 Per Foot
Flex fuel sensor-$219
https://shopjimmyo.com/products/ethanol-content-sensor-ecs
1650cc-$1250
1100cc-$780
650cc-$510
(Kit is cheaper than seperating fuel rail, Injectors, -6an inlet, union, FPR and 0-100PSI gauge)
https://fuelinjectorclinic.com/more-products/fuel-system-kits/FKT-145-6
Approx. injector CC to RWHP (dependent on exact build but rough estimates)
550cc-Approx. 240rwhp
1200cc-Approx. 650rwhp
1600cc-Approx. 850rwhp
Running e85 needs 25%-35% more fuel than pump to achive same results
E85 has roughly a third less energy than gasoline, which means that it takes more E85 to equal gas’ power
Fog Light Rewire
https://www.supraforums.com/threads/fog-light-on-at-any-time-mod-rehash.974025/

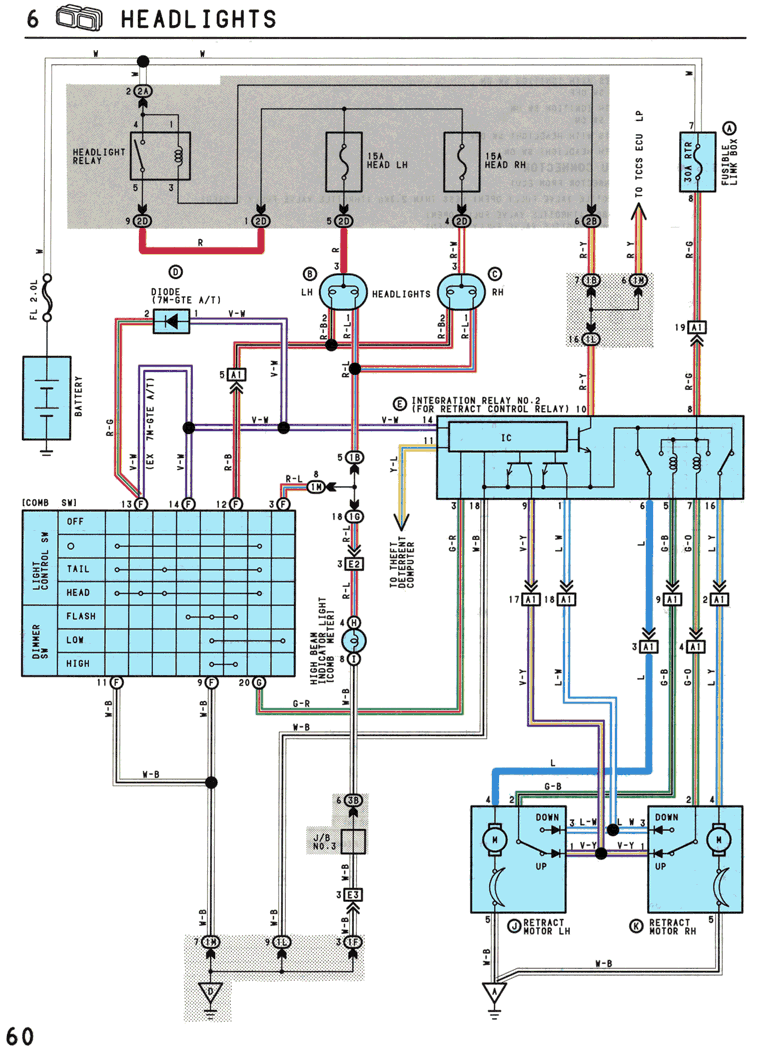

Headlight Wiring Diagram
yeah im not sure on that wideband. you did say you were having a hard time finding info on the one we have. might be a good call. ill have to have some time to look into all that. we should discus this a bit in person.
that's for taking the time to post these links. it worked well. im really leaning towards the haltech, i want to look into it a bit more, but the unit, and software interface seem to be a bit better, more user friendly.
